Real-time geometry updates.
Geometry re-renders as parameters change, so people see the result of a choice immediately.
Platform / Features
A WebGL viewer built for Grasshopper output
The ShapeDiver Viewer renders your parametric model in the browser and updates it in real time as parameters change, without a plug-in or a Rhino license on the viewer’s side. It’s a JavaScript application with a full API you can embed in any web stack, and it’s open source.
Open source. Full JavaScript API (v3).
What it is
Real-time rendering for parametric models

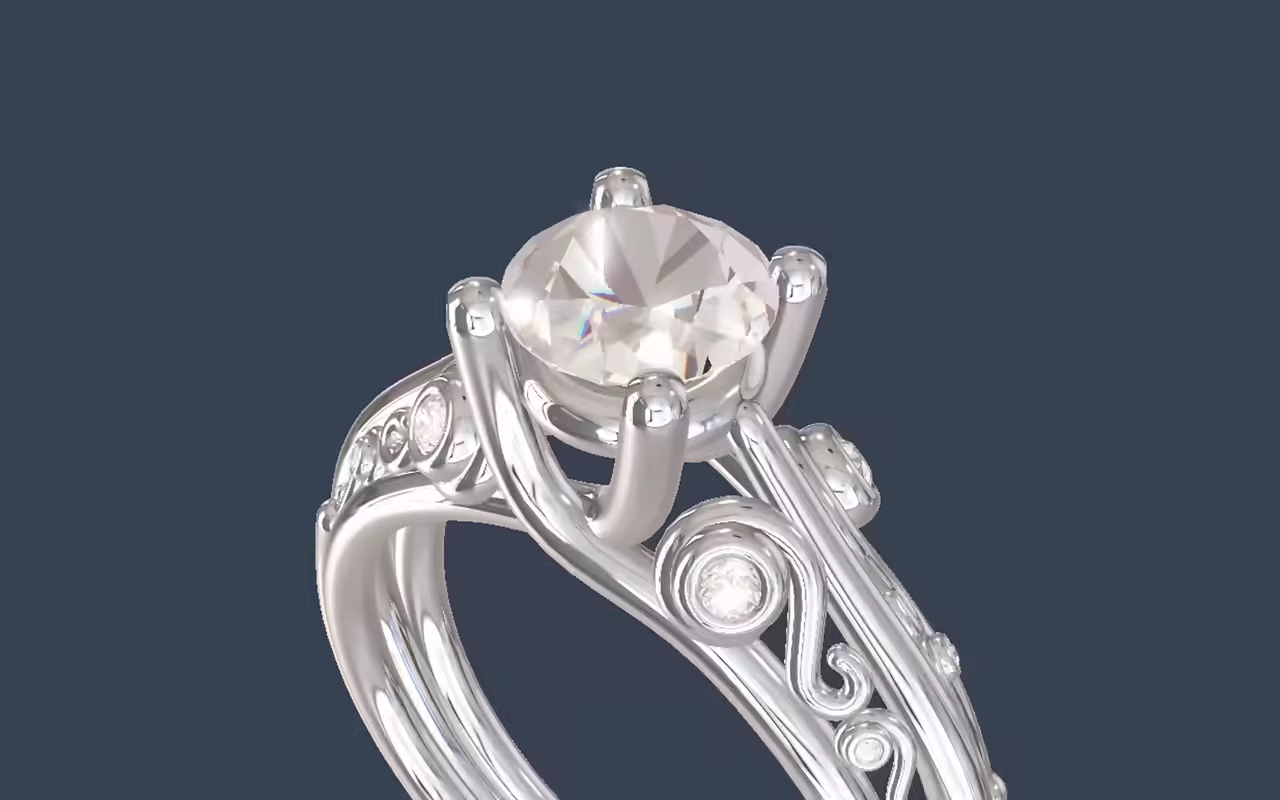

The viewer is a WebGL application that runs in the browser and draws the geometry your model produces. Change a parameter and it updates live - the same model, re-rendered as the result comes back, with no page reload and nothing installed on the viewer’s end. It was written for Grasshopper output and is tuned for what matters in parametric work: clean geometry, materials, and precise updates. And it’s open source, so you can see exactly how it works.
What it does
What it does for a parametric model
Viewer features & guidesMaterials and post-processing.
Rhino 8 materials, plus shadows, ambient occlusion, and bloom, so a model looks like the finished product.
Interaction in the scene.
Selection, drag-and-drop, and animation let people work with the model directly.
Augmented reality.
Put a configured model in the room with AR output - useful when scale and fit are part of the decision.
Scene, lighting, and camera control.
Set up how a model is lit and framed, and drive the camera from your own code.
A JavaScript API you can build on
A full API, embeddable in any stack
The viewer has a complete JavaScript API (version 3), so your code can load a model, set parameters, read outputs, drive the camera, and respond to what people do in the scene. It embeds in any web framework, React and Vue included, or as a standalone component. This is the same viewer App Builder renders on, so a no-code App Builder app and a fully custom front end are two ways of driving the same engine - pick the one that fits the project.
Open source
Open, so you can see how it works
The viewer is open source. For a technical evaluator that’s worth something concrete: you can read the code, understand exactly what runs in your users’ browsers, and follow how it’s built rather than taking our word for it. It’s a working proof of the thing we ask you to trust with your models.
View on GitHubWhere it fits
One part of how an app comes together
The viewer is the render layer - what people actually see. The model behind it is authored in Grasshopper and computed on the platform; the viewer, running in the browser, talks to the platform’s backends to get the geometry and draws it. App Builder builds its no-code interfaces on this viewer, and a custom front end drives it through the Viewer API. Wherever the app ends up (on ShapeDiver or embedded in your own site), the viewer is what renders it.
From the blog
Inside the viewer
All posts
Going All-In on Open Source: The ShapeDiver Viewer is Now Public
The ShapeDiver Viewer, our WebGL engine, is now open source on GitHub. Why we opened it and how it completes the open stack with the App Builder SDK.
Michael Oppitz

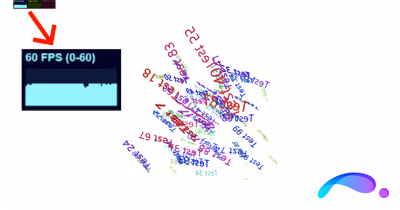

Inside ShapeDiver: Efficiently Rendering the Text Tag 3D Component via Instanced Meshes
